Aercus Instruments WeatherRanger Weather Station with WiFi and Internet Publishing plus Setup eBook

The Aercus Instruments WeatherRanger is the new breed of weather station that combines sleek full colour TFT LCD technology with direct internet publishing, allowing data to be viewed from anywhere on any internet capable device (console connects directly to your WiFi capable modem so your PC or Mac does not need to remain on).

The menu based full colour multi-screen display includes high and low alarm conditions with audible alert, calibration of all major parameters, real-time internet weather publishing to Wunderground.com the world's largest and most popular weather station network, and encrypted WiFi transmission.

The WeatherRanger’s all-in-one external sensor suite tracks the full range of weather variables including UV Index and Light and its rapid 16 second update along with massive built in data logger (66m readings) places it at the head of the queue for all serious weather watchers.

The WeatherRanger is simple to install and is PC and Mac compatible.  Data can be exported to an SD card (in CSV format) for transfer to PC or Mac for detailed analysis in Excel or specialist weather station applications such as Cumulus or Weather Display.

Installation kit included.

Features:

• Full colour TFT LCD console.  Automatically turn on/off the backlight or adjust brightness based on time of day.
• Direct internet publishing.  Console connects directly to your WiFi capable modem so your PC or Mac does not need to remain on.  Data is automatically sent to Wunderground.com (note: indoor temperature and humidity are not currently available on Weather Underground).
• Outdoor temperature
• Indoor humidity
• Outdoor humidity
• Barometric pressure
• Wind speed
• Wind direction
• Rainfall (self emptying rain gauge)
• Dew point
• Windchill
• UV and light measurement
• Short range forecast
• Sunrise, sunset, moonphase
• Date/time
• Console displays history graphs for major weather parameters
• Massive built in data logger (66m readings)
• Customisable weather alarms (high and low for each variable)
• Minima and maxima tracked for each variable
• Storm warning
• User adjustable measuring intervals (1 - 240 minutes)
• Wireless sensors transmit data up to 100m (line of sight) back to LCD display
• Solar panel for outdoor sensors extends battery life.

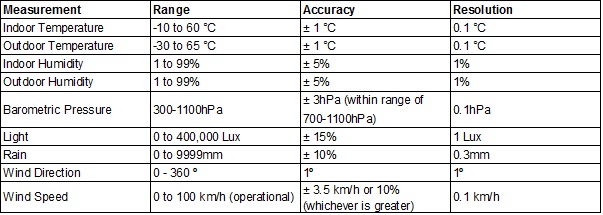

Specifications:

• Console data storage capacity:  up to 66,000,000 readings
• Archive interval: user adjustable from 1 to 240 minutes
• Transmission range:  up to 100m line of sight
• Update rate: outdoor sensor 16 seconds, indoor sensor 64 seconds
• Transmission frequency: 433MHz
• Power consumption: console 5V DC adaptor (included), indoor sensor 2 x AAA batteries (not included), outdoor sensor array 3 x AA batteries (not included)
• Mounting pole: length 20cm (12cm protrudes from base of outdoor sensor), diameter 3cm

Aercus Instruments WeatherRanger - Download Manual

Weather Ranger
